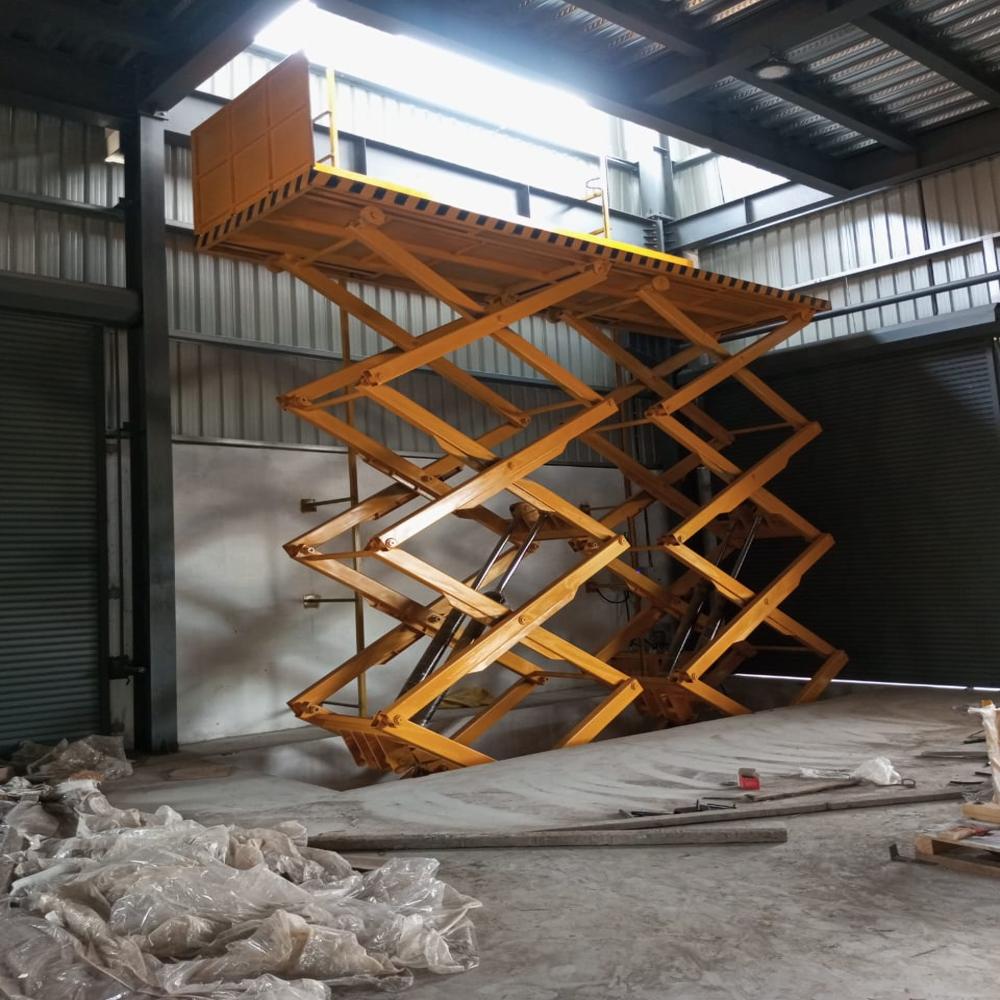

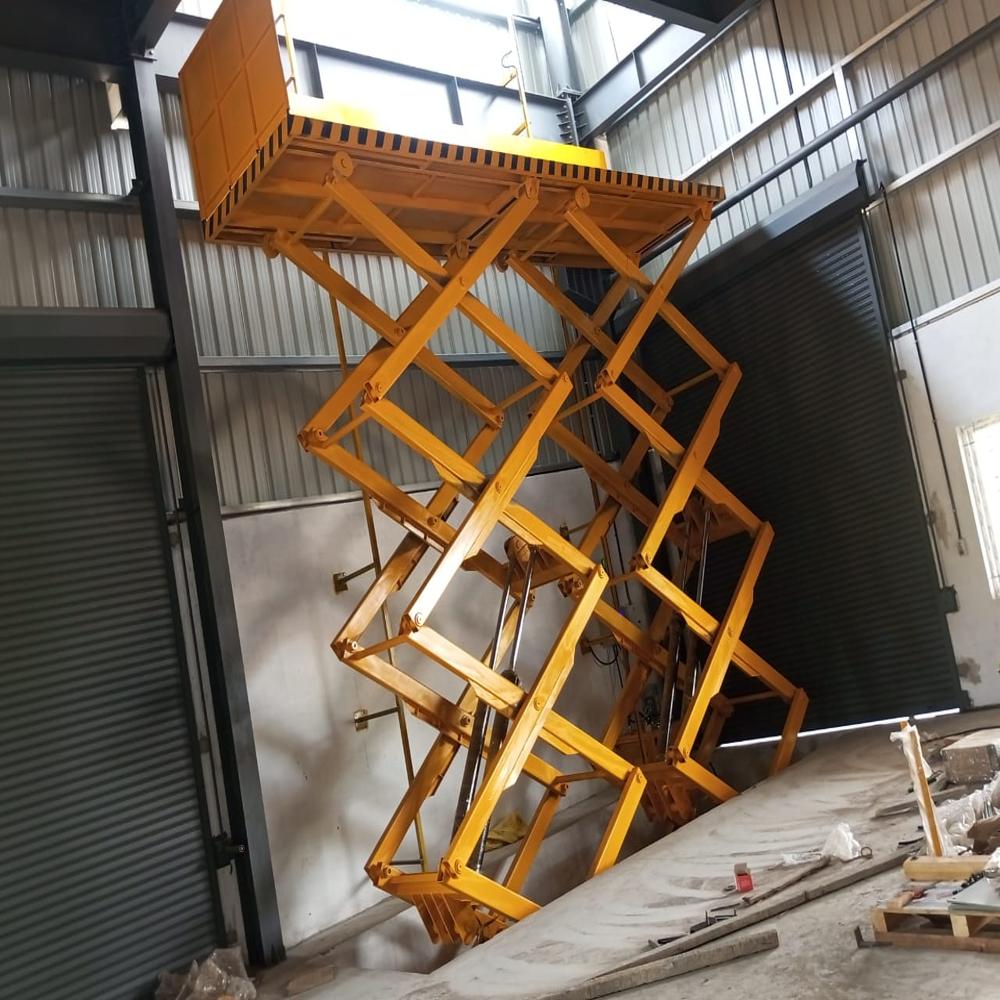

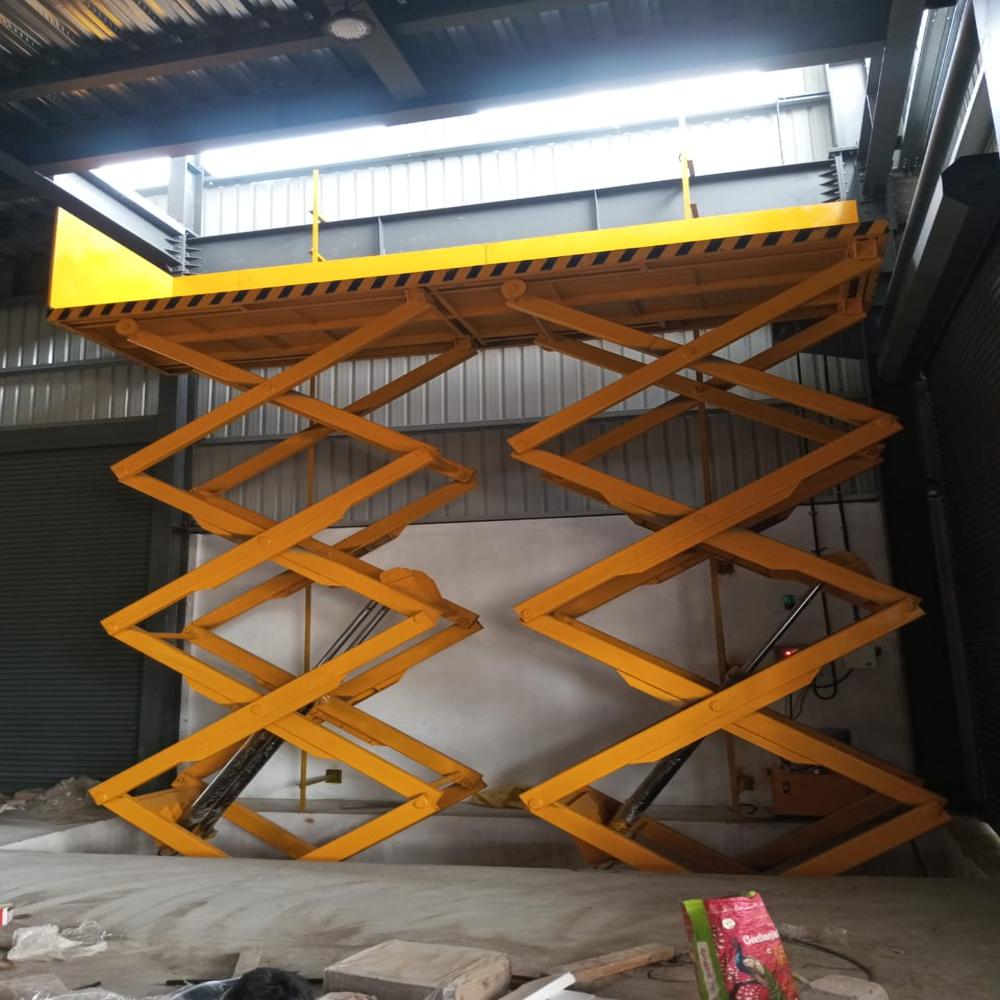

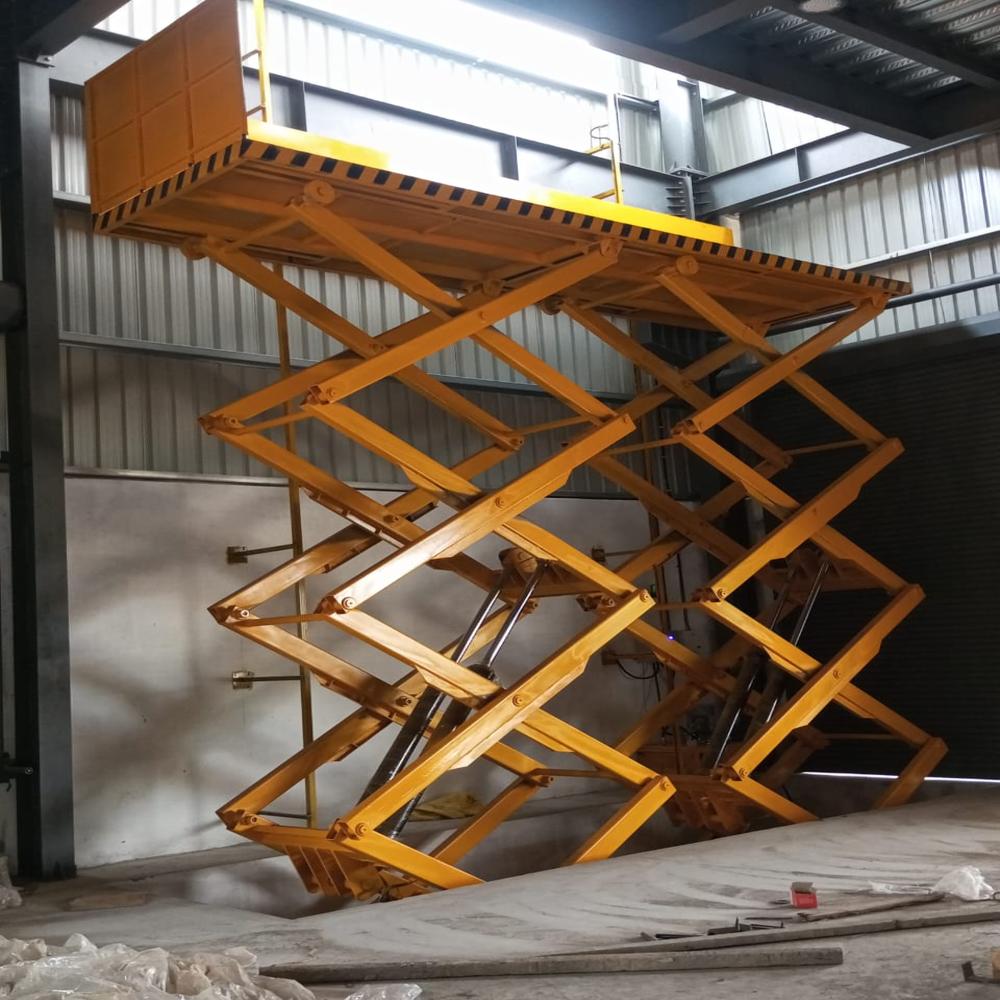

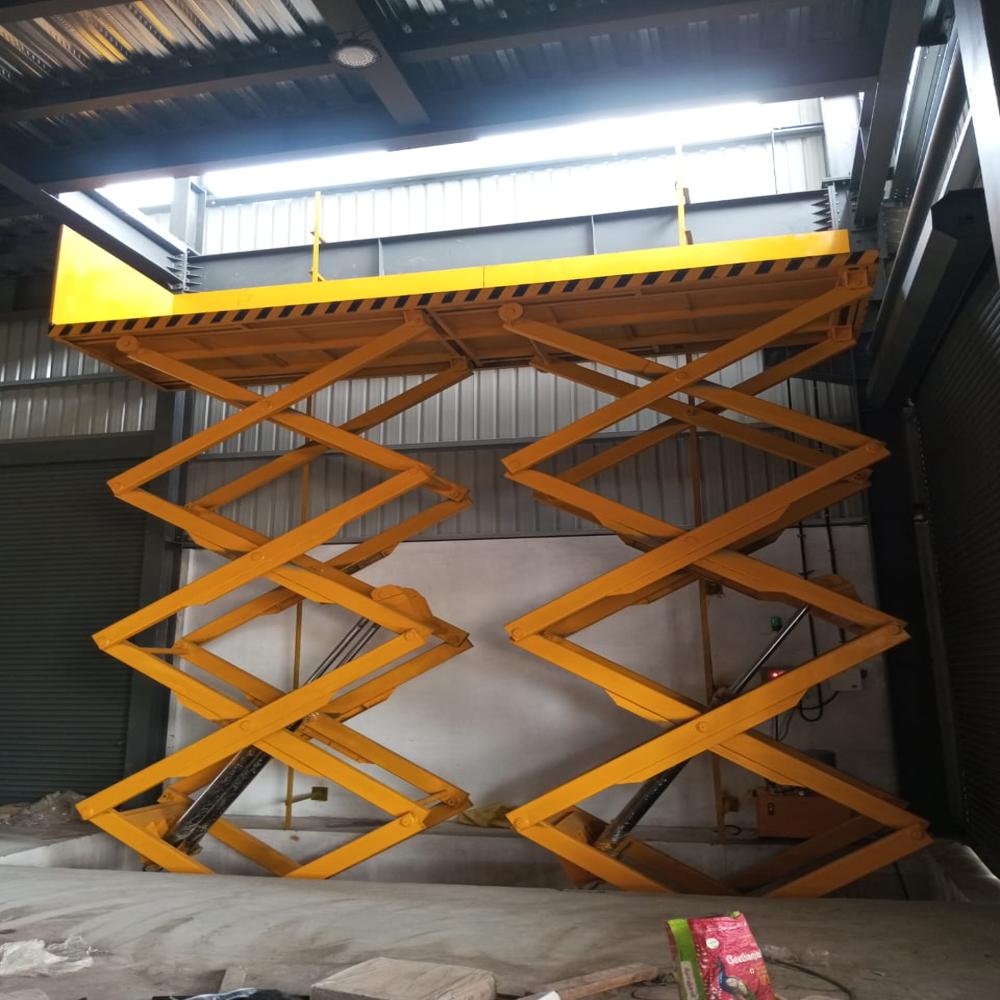

Hydraulic Scissor Lift
800000.0 INR/Unit
Product Details:
- Inclination 0 (Vertical Lift)
- Noise Level < 70 dB
- Car Dimension Customizable as per requirement
- Door Opening Size Customizable
- Voltage 380V / 415V AC (customizable)
- Machine Room Size Not required, compact power pack unit
- Usage Material Handling, Warehouse, Factory, Automobile Service
- Click to view more
X
Hydraulic Scissor Lift Price And Quantity
- 1 Unit
- 800000.0 INR/Unit
Hydraulic Scissor Lift Product Specifications
- Stationary Hydraulic Scissor Lift
- Electric, 3-Phase
- 0.05-0.15 m/s
- Not required for pit-mounted type
- 200-600 mm (as per lift size and height)
- Push Button / Remote Control
- Customizable
- N/A (Platform lift, not a step type)
- Hydraulic Scissor
- 300 kg to 10,000 kg
- 10000 kg
- 0 (Vertical Lift)
- Up to 10 Tons
- Customizable as per requirement
- < 70 dB
- Up to 12 meters
- High strength steel (Q235 or equivalent)
- Material Handling, Warehouse, Factory, Automobile Service
- Not required, compact power pack unit
- Customizable
- 380V / 415V AC (customizable)
- Burst valve, Emergency stop, Safety trip bar
- -10C to +50C
- Hydraulic
- Indoor / Outdoor
- Available for platform size and capacity
- Parker / NOK / Equivalent
- Anti-slip chequered or plain sheet
- Pit mounted / Floor mounted
- Integrated / External (As per site)
- Yes
- 10000+ cycles (typical life)
- ISO VG-32/46/68
- 24V/48V DC
- Cargo lift, Automobile lifts, Goods movement between floors
- Manual valve provided
- Powder Coated / Painted for rust resistance
Product Description
Our organization is offering Ware House Lift Platform that is manufactured under the strict supervision of our qualified professionals and thus, appreciated for their sturdy and rugged construction.We are leading Manufacturers and supplier of Hydraulic Car Scissor Lift, Home lift, Residential Elevator Lift, Residential lift Elevator, Hydraulic Goods Lift, Hydraulic Scissor Lift,Dumbwaiter lift ,Hydraulic Dumbwaiter lift and Passenger Residential Lift, Passenger Lift Scrap Bailing Press Machine, Industrial Goods Lift, Hydraulic Pet Bottle Baling Press Machine, Movable Scissor Lift, H Frame Hydraulic Press Machine, C Frame Hydraulic Press Machine, Hydraulic Deep Drawing Press Machine, Hydraulic Home Lift, Home Indoor Lifts.
Superior Durability & Safety
Constructed from high-strength steel and finished with a powder-coated or painted surface for enhanced rust resistance, the Hydraulic Scissor Lift prioritizes longevity and operator safety. Multiple built-in safety devices, including burst valves, emergency stops, safety trip bars, and overload protection, guarantee secure lifting operations in all environments.
Flexible Installation & Customization
Available as pit-mounted or floor-mounted, with integrated or external power packs to suit your site requirements, this lift offers flexible installation options. Platform size, load capacity (up to 10 tons), car dimensions, and door/opening sizes are all customizable, ensuring the lift fits your unique operational needs.
Efficient & Low-Noise Performance
Designed for quiet operation (<70 dB) and smooth lifting at speeds ranging from 0.05 to 0.15 m/s, the hydraulic drive system utilizes ISO VG-32/46/68 oil to deliver reliability and efficient performance, even under heavy-duty use. Its cycle life exceeds 10,000 lifts, making it ideal for high-frequency material handling.
FAQ's of Hydraulic Scissor Lift:
Q: How does the Hydraulic Scissor Lift ensure operator safety during use?
A: The lift is equipped with multiple safety mechanisms, including a burst valve, emergency stop button, overload protection system, safety trip bar, and manual emergency lowering valve, providing comprehensive safety for operators.Q: What types of platform surfaces are available, and which should I choose?
A: You can opt for either an anti-slip chequered sheet for enhanced grip or a plain sheet platform, depending on your application's safety needs and the type of cargo handled.Q: When is it recommended to select a pit-mounted versus a floor-mounted installation?
A: Pit-mounted installation is ideal when you need a flush platform with ground level for easier loading/unloading, while floor-mounted is suitable for applications without excavation or where mobility is preferred.Q: Where can the lift be installed and operated?
A: It is designed for both indoor and outdoor operations in warehouses, factories, automobile service centers, and material handling areas, thanks to its robust construction and weather-resistant finish.Q: What is the process for customizing the Hydraulic Scissor Lift to specific requirements?
A: Customization involves specifying platform size, load capacity (up to 10 tons), car and door opening dimensions, and choosing power pack location, control voltage, and other accessories. The manufacturer will tailor the lift accordingly.Q: How are control options provided for operating the lift?
A: The lift can be controlled via a push button station or remote control, both supporting 24V/48V DC control voltage, allowing safe and user-friendly operation.Q: What are the main benefits of using a Hydraulic Scissor Lift for material handling?
A: Primary benefits include efficient vertical transfer of heavy loads, lower maintenance needs, quiet operation, high safety standards, prolonged service life (10,000+ cycles), and the ability to customize the lift for diverse applications.Tell us about your requirement
